Introduction
Incidentally, the original version of this weapon used an Imperial Guard vehicle heavy stubber, but that part makes for an expensive conversion, so I went back to the drawing board to find a way to get the same sort of weapon from cheaper and more common bits.
Anatomy of a Smart Gun
The basic idea behind the smart gun is that it’s a large and somewhat cumbersome machine gun that automatically tracks targets by means of sensors and an actuated harness system, while the actual firing is done by the operator. The significant characteristics of this weapon are, therefore, its size, the auto-tracking capability, a high rate of fire, and the fact that it’s fed by a drum magazine. We are going to incorporate those themes so that while the converted smart gun does not look exactly like the one in the movie, it will still have the correct look and feel.
Required Parts

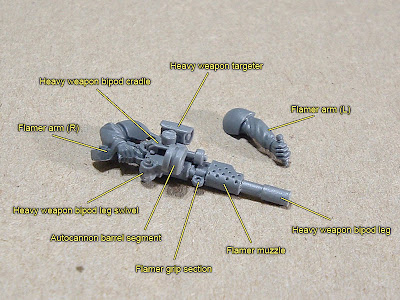

The photo below illustrates the parts needed for this conversion. When only a small portion of a part is required, the important piece is highlighted in red. (Save the leftover pieces! They’ll come in handy later.)
Configuration
The photos below show how all the parts listed above go together to assemble a smart gun.
Assembly
- Shave off the details on the right side of the flamer, making sure the surface is as flat as possible. (The eagle, rivets, and tubing)
- Slice the flamer up so that only the parts highlighted in red remain.
- Glue the flamer grip section upside down to the front of the flamer.
- Shave the back of the flamer muzzle so that it is completely flat.
- Glue the flamer muzzle upside down to the front of the flamer.
- Slice up the bipod so that only the parts highlighted in red remain.
- The smartgun barrel is formed by the bipod leg–slice off the bipod foot and the leg swivel, and the barrel is the leftover section.
- Shave the front and back of the barrel as flat as possible, then glue it to the front of the flamer muzzle.
- Clean up the leg swivel so that there are no remaining traces of the leg that you sliced off in Step 6. Glue that to the bottom of the flamer, directly in front of the handgrip. This adds more visual weight to the back of the smart gun, and suggests a waldo attachment point.
- Glue the bipod cradle to the right side of the flamer.
- Glue the heavy weapon targeter to the “knob” on the bipod cradle.
- Slice out the ribbed autocannon barrel segment. This will be the ammunition drum–make sure the front and back are nice and flat, then glue it to the lower right side of the flamer where it meets the bipod cradle. There is a peg on the bipod cradle that will serve as a convenient guide that fits between the 2 ribs on the drum.
- When you glue the smart gun arms into place, consult the photo below as to where the left hand should be positioned.

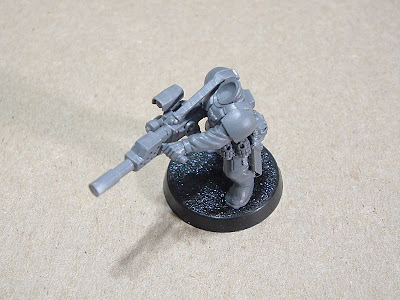

You’re done! Repeat this one more time, and you’ll have a pair of smart guns.
Important note: One heavy weapon bipod yields two smart gun barrels and two waldo attachment points. So, if you do both smart gunners, you’ll actually be using one and a half bipods, not two whole bipods. Use both legs and the bipod cradle of the first bipod, then remove only the bipod cradle from the second bipod. This way, you’ll have two intact bipod leg assemblies to use in the upcoming autoloading mortar conversion.
